Kingston FURY Renegade 2TB SSD Review

Kingston FURY Renegade SSD offers blazing speeds of up to 7,300/7,000MBps read/write and up to 1,000,000 IOPS for consistency and exceptional experience.

Josh Richards  •  December 14, 2021

Editor's Choice - Kingston FURY Renegade 2TB SSD Review
Kingston FURY Renegade 2TB SSD Review
9

Kingston FURY Renegade PCIe 4.0 NVMe M.2 SSD

The Kingston Fury Renegade is the fastest PCIe Gen 4.0 NVMe M.2 SSD drives we’ve tested and is optimised to reduce game and application load times, stream and capture with ease and give your system an overall boost in responsiveness. However, the high-capacity variants can get super expensive.

THE GOOD
  • Up to 4TB-class drive options
  • Excellent performance
  • PlayStation 5 compatible
  • Low profile heat spreader
THE BAD
  • Higher capacity variants are expensive

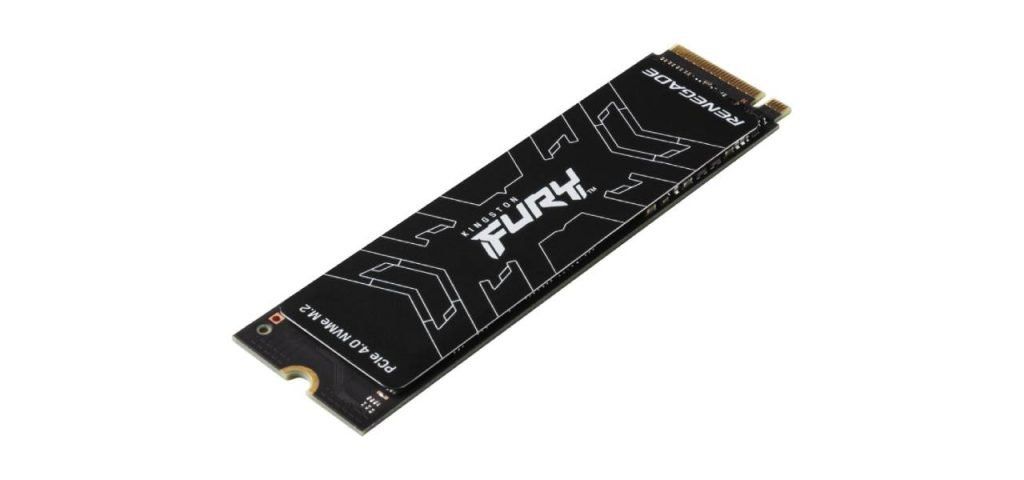

The Kingston FURY Renegade PCIe 4.0 NVMe M.2 SSD, Kingston top-of-the-line SSD, is aimed at gamers, enthusiasts and high-power users. It comes in a M.2 2280 form factor with Gen 4×4 NVMe PCIe interface, based on 3D NAND TLC chips and a Phison E18 controller.

There are four different versions available in different storage capacities of 500GB, 1TB, 2TB and 4TB and comes with a low-profile graphene aluminum heat spreader with a weight of only 9.7 grams (2TB-4TB variant).

Our review model is the 2TB version. Kingston claims sequential read speeds that can reach upto 7,300 Mbps and sequential write speeds of 7,000 Mbps on this model.

The SSD is rated for an MTTF (Meant time to failure) of 1,800,000 hours, with operating temperatures of 0 to 70 degrees Celsius and is backed by a 5-year warranty.

A big thank you to Kingston for sending us this review unit.

Highlights

  • PCIe Gen 4×4 NVMe performance
  • Low-profile graphene aluminium heat spreader
  • Slim M.2 2280 form factor
  • High capacities of up to 4TB
  • PS5 ready

Specifications

Capacity500GB, 1TB, 2TB, 4TB
Form FactorM.2 2280
Operating Temperature0°C ~ 70°C
ControllerPhison E18
InterfacePCIe 4.0 NVMe
Sequential read/write500GB – 7,300/3,900MB/s 1TB – 7,300/6,000MB/s 2TB – 7,300/7,000MB/s 4TB – 7,300/7,000MB/s
Random 4K read500GB – up to 450,000/900,000 IOPS 1TB – up to 900,000/1,000,000 IOPS 2TB – up to 1,000,000/1,000,000 IOPS 4TB – up to 1,000,000/1,000,000 IOPS
Endurance500GB – 500TBW 1TB – 1.0PBW 2TB – 2.0PBW 4TB – 4.0PBW
MBTF1,800,000 hours
Weight500GB-1TB – 7g 2TB-4TB – 9.7g
Dimensions80mm x 22mm x 2.21mm (500GB-1TB) 80mm x 22mm x 3.5mm (2TB-4TB)
Warranty5 years

Unboxing

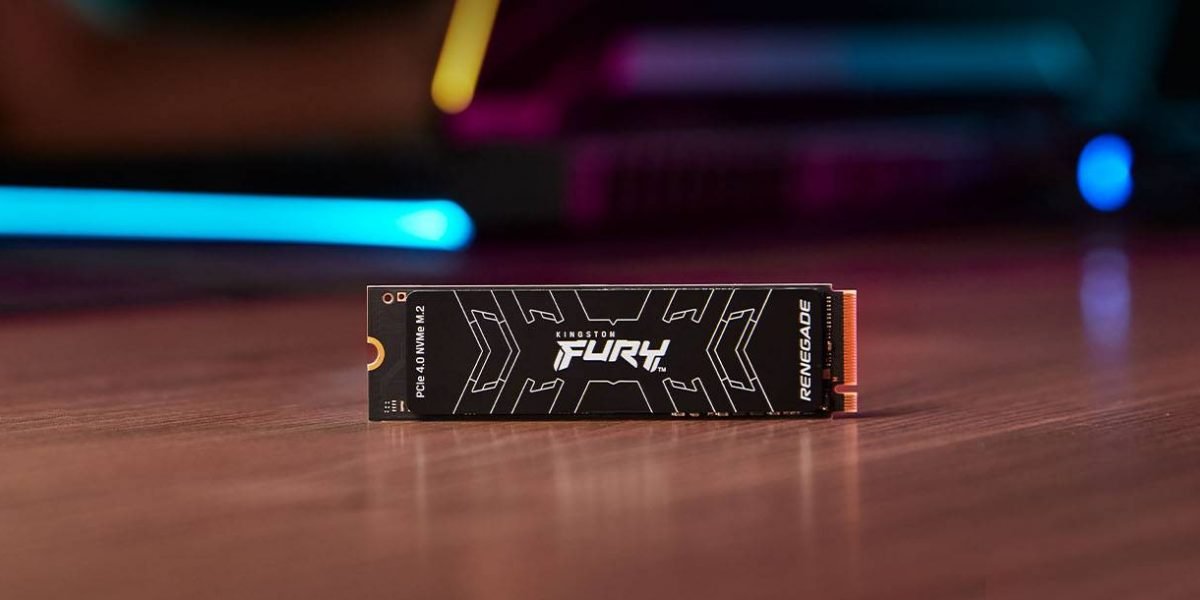

The Kingston Fury Renegade comes in the usual Kingston cardboard packaging with a plastic blister, to keep the drive safe during shipping. The SSD comes in the M.2 2280 form factor, 80mm x 22mm x 3.5mm in size and weighs 9.7 grams (2TB-4TB variant). The package also includes a serial to Acronis True Image HD software for backups, archiving and recovery.

As this is a M.2 2280 form factor drive combined with a low-profile graphene aluminum heat spreader, it’s fairly easy to install on gaming rigs, gaming laptops and motherboards.

Kingston FURY Renegade 2TB SSD Review
Kingston FURY Renegade 2TB SSD Review

The Kingston Fury Renegade comes in the M.2 format and connects over a PCI-Express 4 x4 interface. This format is approximately twice as faster than PCIe 3.0, the Kingston Fury Renegade PCIe 4.0 NVMe M.2 2TB SSD is capable of both high speed read and transfer rates, as well as faster access times.

On our review model, 2TB version, there are memory chips installed on both sides of the PCB.

Performance

Our review unit is the 2TB version. For the performance tests we have used the following hardware. On paper, performance should be 7,300MB/s in sequential reading and 7,000MB MB/s in writing, along with 1,000,000 IOPS.

The Kingston Fury Renegade is also backward compatible with PCIe Gen 3 but will only operate at Gen 3 speeds.

Test Bench

  • ASUS B550-F Wifi Motherboard
  • AMD Ryzen 5 3600
  • BeQuiet Dark Rock Pro 3
  • MSI 5700 XT Gaming X
  • Cougar GX-F AURUM 650W PSU
  • Kingston FURY Renegade DDR4 32GB 3600MHz RAM
  • Kingston Fury Renegade PCIe 4.0 NVMe M.2 2TB SSD

After formatting the drive, we are left with 1.86TB of free space. During tests, the Kingston Fury Renegade performed extremely well. Transferring and reading files, booting the system and loading games is amazingly quick with this SSD.

In our Final Fantasy XIV: Endwalker test, a benchmark that simulates game load time, the Kingston Fury Renegade came out with an impressive load time of 7.5 seconds.

Kingston FURY Renegade 2TB SSD Review

When copying files during everyday use, the speeds are in the range of 1,300-1,900 MB/s, depending on the size of files. In CrystalDiskMark, the Fury Renegade comes out with 6,955 MB/s and 6,821 MB/s in sequential reading and writing. In ATTO Disk we see rates above 6,882 MB/s in reading and 6,415 MB/s in writing.

CrystalDiskmark Read6,955 MB/s
CrystalDiskmark Write6,821 MB/s
ATTODisk Read6,882 MB/s
ATTODisk Write6,415MB/s

The Kingston Fury Renegade maintained stable temperatures between 40-45 degrees during work tasks. And while gaming and on load it went up to a maximum of 68 degrees.

Software

The Kingston SSD Manager can be downloaded from Kingston’s website, which can help with monitoring temperature, drive health, status, and disk usage and also update firmware as and when they are released. The utility also allows to tune the drive depending on the workload.

Conclusion

The Kingston Fury Renegade is the fastest PCIe Gen 4.0 NVMe M.2 SSD drives we’ve tested and is optimised to reduce game and application load times, stream and capture with ease and give your system an overall boost in responsiveness. However, the high-capacity variants can get super expensive.

The new FURY Renegade SSD is currently available in 500GB, 1TB, 2TB and 4TB capacities and is backed by a limited five-year warranty
