WD Black SN750 NVMe SSD Review
PC & Hardware

WD Black SN750 NVMe SSD Review

The WD Black SN750 is a high-performance SSD and a great option if you are looking to upgrade your existing SSD to a faster one.

The WD Black SN750 NVMe SSD, Western Digital’s top-of-the-range SSD, is aimed at gamers and creative professionals. It comes in a M.2 2280 form factor with PCIe 3.0 x4 interface, based on proprietary 64-layer 3D NAND TLC chips and a triple-core controller.

There are two different versions available, with and without an aluminum heatsink and in different storage capacities of 500GB, 1TB, and 2TB. The variant without the heatsink is aimed at laptops and smaller desktop cases which include their own heatsinks.

WD Black SN750
WD Black SN750

Our review model is the 1TB version with the integrated heat sink. WD claims sequential read speeds that can reach upto 3,470 MBps and sequential write speeds of 3,000 Mbps on this model.

The SSD is rated for an MTTF (Meant time to failure) of 1,750,000 hours, with operating temperatures of 0 to 70 degrees Celsius and is backed by a 5-year warranty.

Specifications

ModelWDBGMP0010BNC-WRSN
Capacity1000 GB (931 GB usable)
Form FactorM.2 2280
Dimensions80mm x 22mm x 8.1mm
Operating Temperature0°C ~ 70°C
Endurance600 TBW
MTTF1,750,000 hours
InterfacePCIe Gen3 8Gb/s, up to 4 lanes
Warranty5 years

Packaging & Design

The WD Black SN750 comes in an glossy cardboard box with a photo of the SSD on the front and details, descriptions on the sides. There is also a small viewing window at the back.

WD Black SN750
WD Black SN750

Inside the box, The SSD is protected by a foam packaging to prevent any damange. The box also includes the warranty card. The SN750 measure 80 x 24.2 x 8.10 mm, with a weight of 33.2 grams including the heatsink.

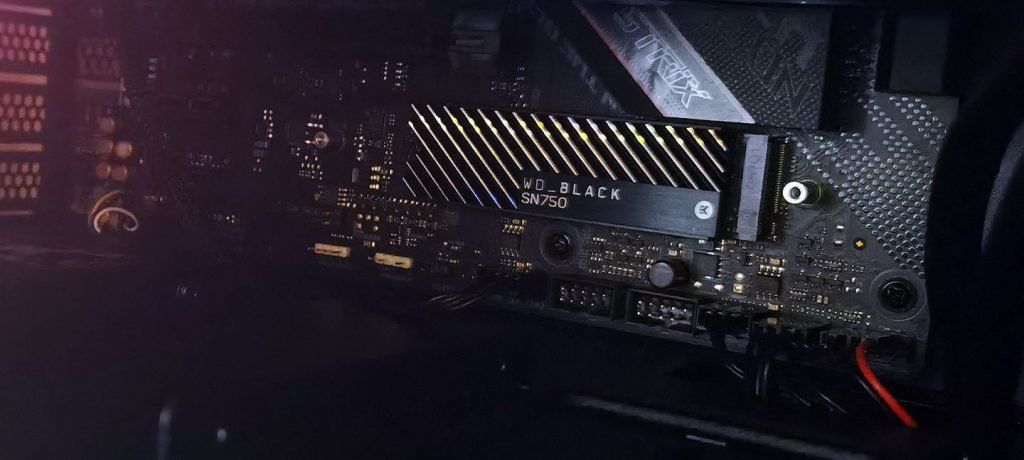

In terms of design, the SN750 is very sleek and with its all-black PCB and aluminium heat-sink fins. It’s blends in nicely with the other components and feels great look at if you own a case with a glass side panel.

WD Black SN750
WD Black SN750

Performance

Test Bench

  • Thermaltake H200 Case
  • ASUS B550-F Wifi Motherboard
  • ASUS Ryzen 5 3600
  • BeQuiet Dark Rock Pro 3
  • MSI 5700 XT Gaming X
  • Cougar GX-F AURUM 650W PSU
  • Corsair Vengance 16GB DDR4 RAM
  • WD Black SN750 SSD

In our CrystalDiskMark benchmark, the WD Black SN750 nearly matches the speed advertised by WD and performs well with reading and writing operations.

CrystalDiskmark Read3,287 MB/s
CrystalDiskmark Write2,941 MB/s
ATTODisk Read3,260 MB/s
ATTODisk Write2,915MB/s
PCMark 8 Bandwidth Score548 MB/s

When copying files during everyday use, the speeds are in the range of 1500-2000 MB/s. The average bandwidth score during PCMark 8 tests were 554 MB/s.

In our Final Fantasy XIV StormBlood test, a benchmark that simulates game load time, the SN750 came out with an impressive load time of 10.55 seconds.

The SN750 maintained stable temperatures between 43-45 degrees during work tasks. And while gaming it went upto a maxium of 55 degrees, which is excellent for its class.

Software

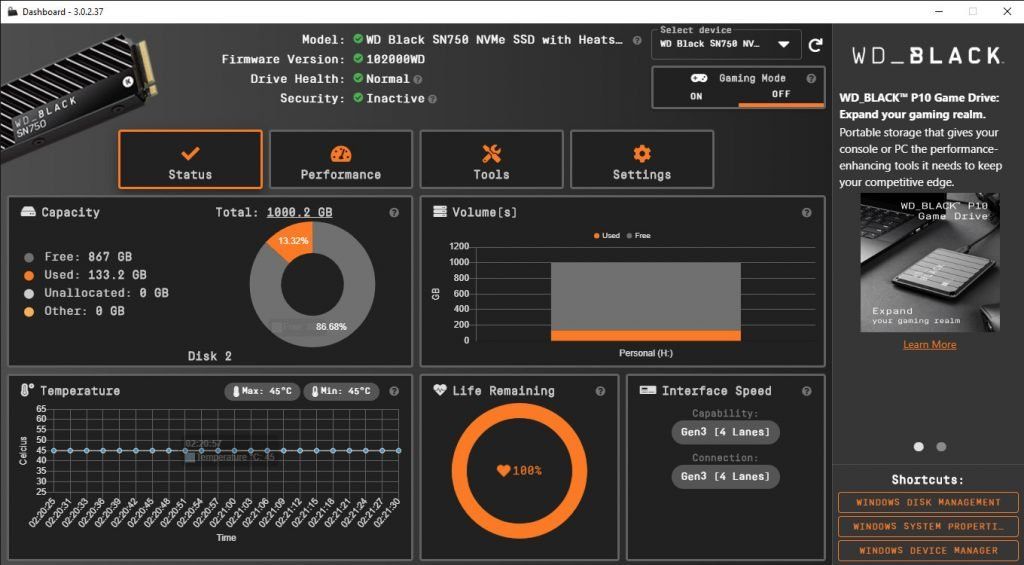

In additon to the standard options, the WD Black SSD Dashboard now includes a ‘gaming mode’. This new mode disables hardware-level power-saving features to reduce latency and increase performance. To enable gaming mode, you will need to restart your PC.

WD Black SN750
WD Black SN750

However, it didn’t seem to make any difference as we did not see a change during benchmarks. WD also includes Acronis True Image WD Edition which can be downloaded via the WD website.

Conclusion

The SN750 is one of the fastest SSD’s with a 3,400 MB/s read speed and 3000 MB /s write speed and claims to have a write durability of up to 600TB.

It was able to perform fast and smooth in our daily tasks and also significantly reduce loading times for the most resource-intensive games while remaining relatively cool.

WD Black SN750
WD Black SN750

Couple of the downsides here are the expensive price and lack of hardware encryption, which might be a deal-breaker for some. But when it comes to performance and aesthetics, the SN750 is one of our top recommendations.

8.8

WD Black SN750

The WD Black SN750 is a high-performance SSD and a great option if you are looking to upgrade your existing SSD to a faster one.

THE GOOD
  • Excellent performance
  • Good temperatures
  • Well designed
THE BAD
  • Expensive
  • No hardware encryption
