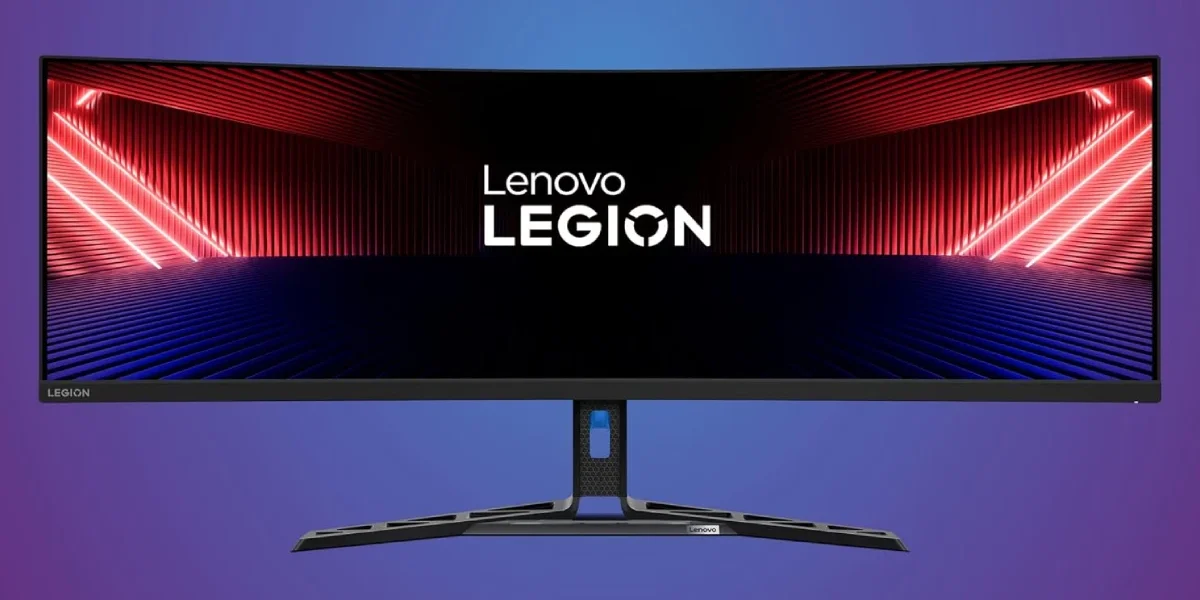

The Lenovo Legion R45w-30 monitor delivers an immersive gaming experience through its colossal curved display. With a 32:9 aspect ratio and a generous 44.5-inch size, it boasts a DQHD resolution of 5120 x 1440 for crisp visuals.
Equipped with HDR technology certified by VESA DisplayHDR 400, 170Hz refresh rate coupled with a lightning-fast 1ms MPRT response time, the R45w-30 offers seamless gameplay and a competitive edge.
The inclusion of AMD FreeSync Premium Pro and Adaptive Sync ensures a tear-free, stutter-free gaming experience. Versatility connectivity options like USB-C, HDMI, DP, and a USB hub allow for effortless device integration.
Additional features like smart network optimization, True Split, and gaming tools enhance productivity and gameplay. The monitor also incorporates Natural Low Blue Light technology.
Highlights
- Ultra-wide, curved 44.5-inch display with a 32:9 aspect ratio.
- 5120 x 1440 resolution.
- VESA-certified DisplayHDR 400 with HDR technology.
- 170Hz refresh rate and 1ms MPRT response time.
- AMD FreeSync Premium Pro and Adaptive Sync
- USB-C, HDMI, DP, and USB hub.
- Smart network optimization, True Split, and gaming tools.
- Natural Low Blue Light technology.
Specifications
| Size | 44.5″ |
| Features | Eyesafe® Display 2.0 TÜV Low Blue Light (Hardware solution) TÜV Rheinland Eye Comfort |
| Connectivity | 3x USB-A 3.2 Gen 1 1x USB-B 3.2 Gen 1 (USB upstream) 1x USB-C 3.2 Gen 1 (DP 1.4 Alt Mode, USB upstream) 2x HDMI 2.1 1x DP 1.4, 1x USB-C\ 3.2 Gen 1 (DP 1.4 Alt Mode) 1x RJ45 |
| Resolution | 5120×1440 |
| Panel Type | VA |
| Curvature | 1500R |
| HDR | DisplayHDR 400 |
| Backlight Technology | WLED backlight |
| Brightness | 450 cd/m² |
| Native Contrast | 3000:1 |
| Max Refresh Rate | 165Hz |
| Response Time | 1ms (MPRT) 4ms (Level 4) 7ms (Level 3) 9ms (Level 2) 12ms (Level 1) |
| Display Colors | 16.7 Million |
| Color Coverage | 99% sRGB, 90% DCI-P3 |
| Sync Technology | AMD FreeSync Premium Pro VESA Adaptive Sync |
| Built-in Speaker | 3Wx2 |
| Ergonomics | Tilt, Swivel, Height Adjust Stand Supports VESA mount 100 x 100 mm & 200 x 100 mm |
| Dimensions | 42.91×13.43×20.8 inches (WxDxH) 12.1 kg / 26.7 lbs. |
View full specifications here.
Packaging
The packaging comes in large cardboard box with the monitor and accessories well protected for transport. The box includes:
- Monitor with stand
- 1 x Power cable (1.8m)
- 1 x DP cable (1.8m)
- 1 x USB Type-A To Type-B cable (1.8m)
- Quick setup guide
- Warranty Booklet
Connectivity & Display
The Legion R45w-30, a behemoth at 45 inches with a weight of over 12 kg (including the stand) and dimensions of 42.91×13.43×20.8 inches, demands a ton of desk space.
Connectivity-wise, it offers two HDMI 2.1 inputs, a DisplayPort 1.4, a USB 3.2 hub (Gen 1), an RJ-45 socket clocking in at 2.5 Gbit/s, a headphone output, and a USB-C port equipped with DisplayPort Alternate mode, along with a robust 75-watt PD capacity. Ergonomically, it ticks all the boxes, featuring tilt, rotation, height adjustment, VESA mounting (100 x 100 mm), blue light filtering, and flicker-free backlight technology.
Bringing tear-free gaming to the forefront with FreeSync Premium Pro support, this monitor also flaunts ClearMR-7000 certification, offering picture-in-picture and picture-by-picture modes. It boasts a KVM switch and doubles as a USB-C docking station.
Navigating the OSD is a breeze with a straightforward vertical menu encompassing Game, Screen, Color, Port, and Menu settings. Simplified into three columns, each previews the subsequent option.
Sporting a VA panel with a 1500R curvature and certified DisplayHDR 400, it maintains a maximum refresh rate of 170 Hz. With a contrast ratio of 3000:1, a peak brightness of 500 cd/m², and a swift 4 ms response time (gray to gray), it flaunts an 8-bit color depth and consumes an average of 34 watts. Impressive specifications also include 99 percent sRGB coverage and 90 percent DCI-P3 color gamut.
This monitor’s performance truly immerses gamers, enhancing gameplay with its enveloping curved screen and breathtaking visuals. Its versatility extends to multitasking, ideal for simultaneously managing multiple applications on a single, ultra-wide screen.
Audio
Regarding audio, the monitor houses integrated speakers, albeit delivering a modest output of 3 watts each. While not the best, they serve their purpose functionally.
Verdict
Lenovo’s Legion R45w-30 impresses with its expansive size and immersive 1500R curvature, catering excellently to gaming and multitasking needs. Its affordability compared to rivals, coupled with a rich feature set, makes it a versatile choice, seamlessly fitting gaming and workstation requirements.
While the audio output might not be top-notch, its overall performance makes it a compelling choice for both gaming enthusiasts and multitasking professionals.
